Solvent Mixing Control

Application:

  • To control the dispensing of solvent base on the user set weight and mixing to chemical in automated sequence

Solution

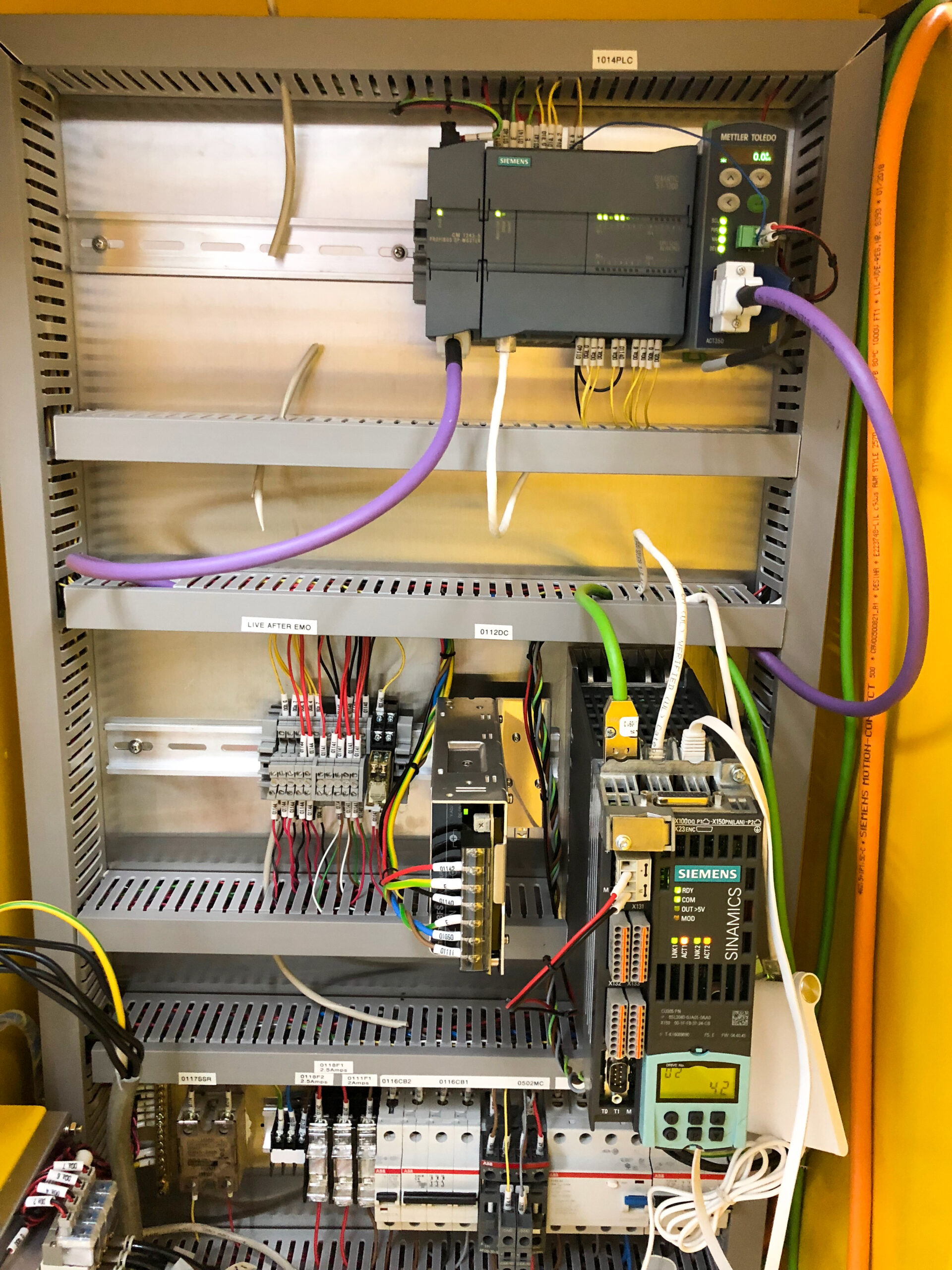

  • Siemens S7 1200 PLC for the machine control and interfacing to weighing scale via PROFIBUS
  • Siemens KTP400 HMI panels for the visualization, control and interfacing for the operator to operate the machine.
  • Siemens S110 Servo Drive system for the dispensing of solvent accurately.
