IEC Inlet Filters

FN 9255E

High performance dual-stage IEC C14 inlet filter with earth line choke

Features & Benefits

• Exceptional attenuation performance from 150kHz to 300MHz due to dual-stage design
• High saturation resistance and excellent thermal behavior
• Medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Suitable for IEC/EN 55014 tests up to 300MHz
• Rear and Front flange or snap-in mounting options
• Earth line choke Version, for standard version see FN 9255
• All versions according IEC/EN 62368-1

FN 9255

High performance dual-stage IEC C14 and C20 inlet filter

Features & Benefits

• Exceptional attenuation performance from 150kHz to 300MHz due to dual-stage design
• High saturation resistance and excellent thermal behavior
• Rear and Front flange or snap-in mounting options
• Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Optional earth line choke see FN 9255 E versions
• All versions according IEC/EN 62368-1

FN 9266

High performance power entry module with switch

Features & Benefits

• Exceptional attenuation performance from 150kHz to 300MHz due to dual-stage design
• High saturation resistance and excellent thermal behavior
• Rear and Front flange or snap-in mounting options
• Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Optional earth line choke see FN 9255 E versions
• All versions according IEC/EN 62368-1

FN 9262

High performance power entry module with fuses

Features & Benefits

• Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• B types comply with the requirements of IEC/EN 60601-1 (1MOPP) for creepage and clearance, leakage current and high potential testing
• Versions up to 10 A are available with fuse holder for two fuses
• Custom-specific versions are available on request

FN 9222

General performance IEC inlet filter

Features & Benefits

• Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear/front or snap-in mounting
• Wide mounting flanges available
• Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing 12 and 15 A types with hot inlet available
• Optional surge pulse protection
• Different output connections offering maximum flexibility for assembly
• Custom-specific versions are available on request

FN 9222E

General performance EMC/EMI filter with earth line choke

Features & Benefits

• Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear/front or snap-in mounting
• Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Wide mounting flanges available
• Different output connections offering maximum flexibility for assembly
• Without earth line choke see FN 9222 data sheet

FN 9226

HF performance EMC/EMI filter

Features & Benefits

• High conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear flange mounting
• Optional low leakage current versions for medical applications
• Faston connection or PCB through hole pins
• Good HF coupling
• Rated currents up to 10 A
• Custom-specific versions are available on request

FN 9233

HF performance EMC/EMI filter

Features & Benefits

• Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear/front or snap-in mounting
• Optional earth line choke see FN 9233 E data sheet
• Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Wide mounting flanges available
• Different output connections offering maximum flexibility for assembly
• Custom-specific versions are available on request

FN 9233E

High performance EMC/EMI filter with earth line choke

Features & Benefits

• Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear/front or snap-in mounting
• Without earth line choke see FN 9233 data sheet
• Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Wide mounting flanges available
• Different output connections offering maximum flexibility for assembly
• Custom-specific versions are available on request

FN 9244

Excellent performance EMC/EMI filter

Features & Benefits

• Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear/front or snap-in mounting
• Standard or wide mounting flange
• Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Optional earth line choke see FN 9244 E data sheet
• Custom-specific versions are available on request

FN 9244E

Excellent performance EMC/EMI filter with earth line choke

Features & Benefits

• Superior conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear/front or snap-in mounting
• Without earth line choke see FN 9244 data sheet
• Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Wide mounting flanges available
• Custom-specific versions are available on request

FN 9246

High performance IEC inlet filter

Features & Benefits

• Excellent conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear mounting
• Optional low leakage current versions for medical applications
• Rated currents up to 20 A
• Custom-specific versions are available on request

FN 9260

General purpose power entry module with fuses

Features & Benefits

• Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• B types comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing
• Versions up to 10 A are available with fuse holder for one or two fuse

FN 9264

Compact filtered power entry module

Features & Benefits

• Excellent conducted attenuation performance, based on chokes with high saturation resistance and good thermal behavior
• High quality 2-pole rocker switch for all-pole disconnection
• Faston terminals for easy assembly
• Medical version (B type) according IEC/EN 60601-1
• As flange mount and snap-in types available

FN 9280

Ultra compact and versatile filtered power entry module

Features & Benefits

• Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Deep-drawn iron-sheet housing for best possible shielding against magnetic fields
• Rear/front flange mounting or snap-in versions
• Dual and additional spare fuse holder 2-pole rocker switch
• Faston or spring cage terminals
• Medical version (B Type) according IEC/EN 60601-1
• All versions according IEC/EN 62368-1

FN 9290

Ultra compact and versatile filtered power entry module

Features & Benefits

• Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Deep-drawn iron-sheet housing for best possible shielding against magnetic fields
• Rear/front flange mounting or snap-in versions
• Dual and additional spare fuse holder 2-pole rocker switch
• Faston or spring cage terminals
• Medical version (B Type) according IEC/EN 60601-1
• All versions according IEC/EN 62368-1

FN 280

Compact filtered power entry module

Features & Benefits

• High conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear/front or snap-in mounting
• Single or dual-fuse holder 2-pole rocker switch

FN 370

Versatile filtered power entry module

Features & Benefits

• Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear/front or snap-in mounting
• Single or dual-fuse holder USA Ø6.3 x 32 mm or EU Ø5 x 20 mm fuses
• Two attenuation performance ranges
• Voltage selector 100/120/230/240 V

FN 380

Versatile filtered power entry module

Features & Benefits

• Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Front or snap-in mounting
• Single or dual-fuse holder
• USA Ø6.3 x 32 mm or EU Ø5 x 20 mm fuses
• 2-pole rocker switch

FN 390

Versatile filtered power entry module

Features & Benefits

• High conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Rear or front mounting
• Single or dual-fuse holder
• USA Ø6.3 x 32 mm or EU Ø5 x 20 mm fuses
• 2-pole rocker switch
• Voltage selector 110-120 V/220-240 V
• Custom-specific versions are available on request

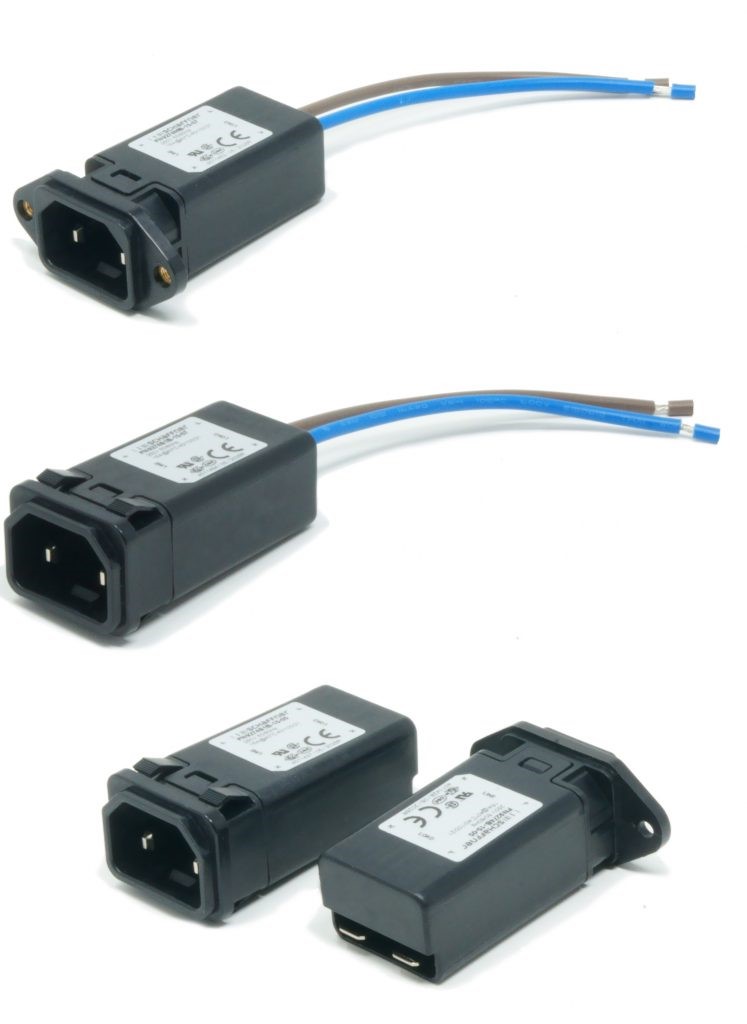

FN 9274

Versatile Medical Class ll EMC/EMI Filter

Features & Benefits

• Suitable for class II Medical Equipment (ME)
• Fulfills the requirements for Two MOPP in IEC60601-1- Medical electrical equipment
• Fulfills the requirements in IEC/EN 62368-1 – Audio/video, information and communication technology equipment
• Fulfills the requirements in IEC/EN 60950-1 – Information technology equipment
• Fulfills the requirements in IEC/EN 60335-1 – Household and similar electrical appliances
• Fulfills the requirements for Reinforced Insulation in IEC 61010-1 – Safety requirements
• All versions certified according UL/IEC 60939-3, C22.2 No. 8. CQC/CCC GB/T15287 and GB/T15288
